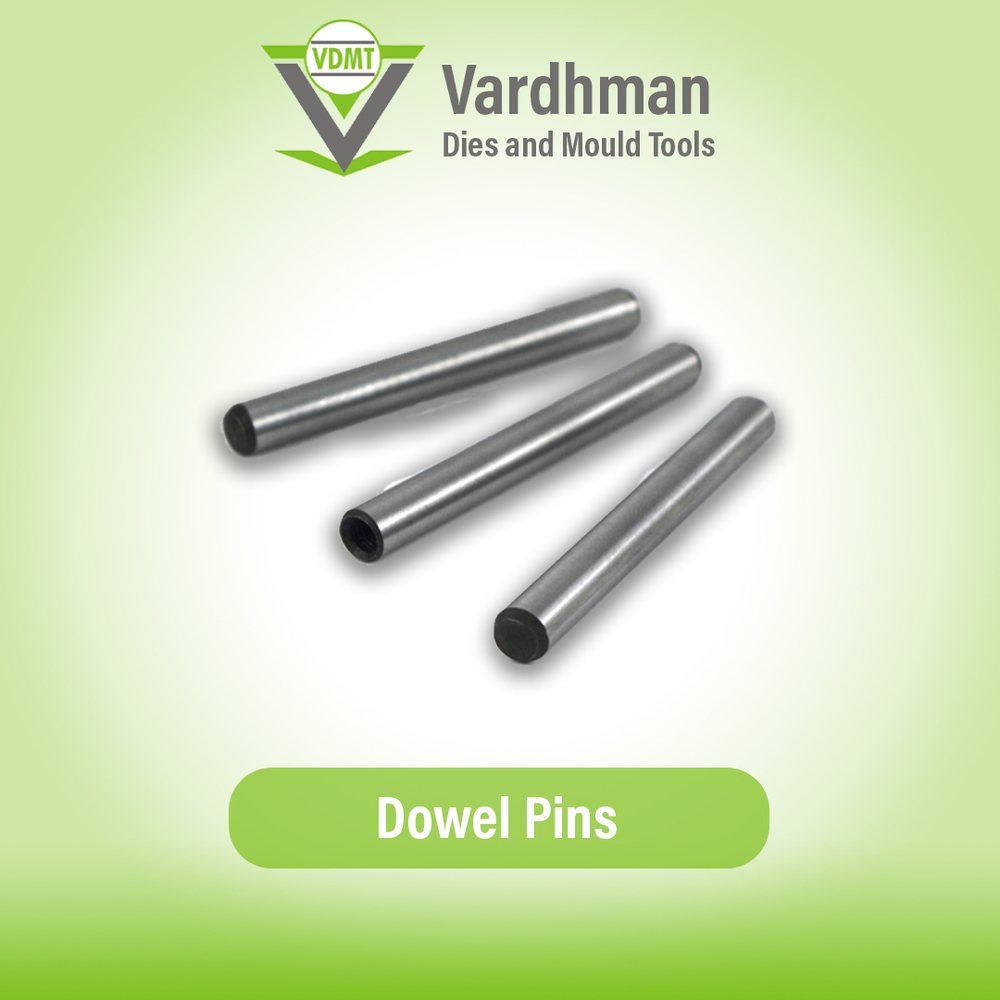

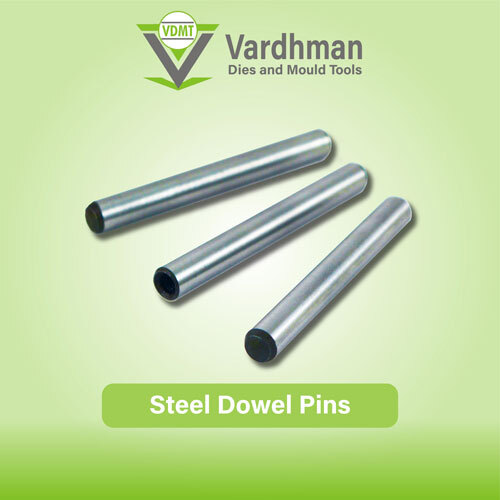

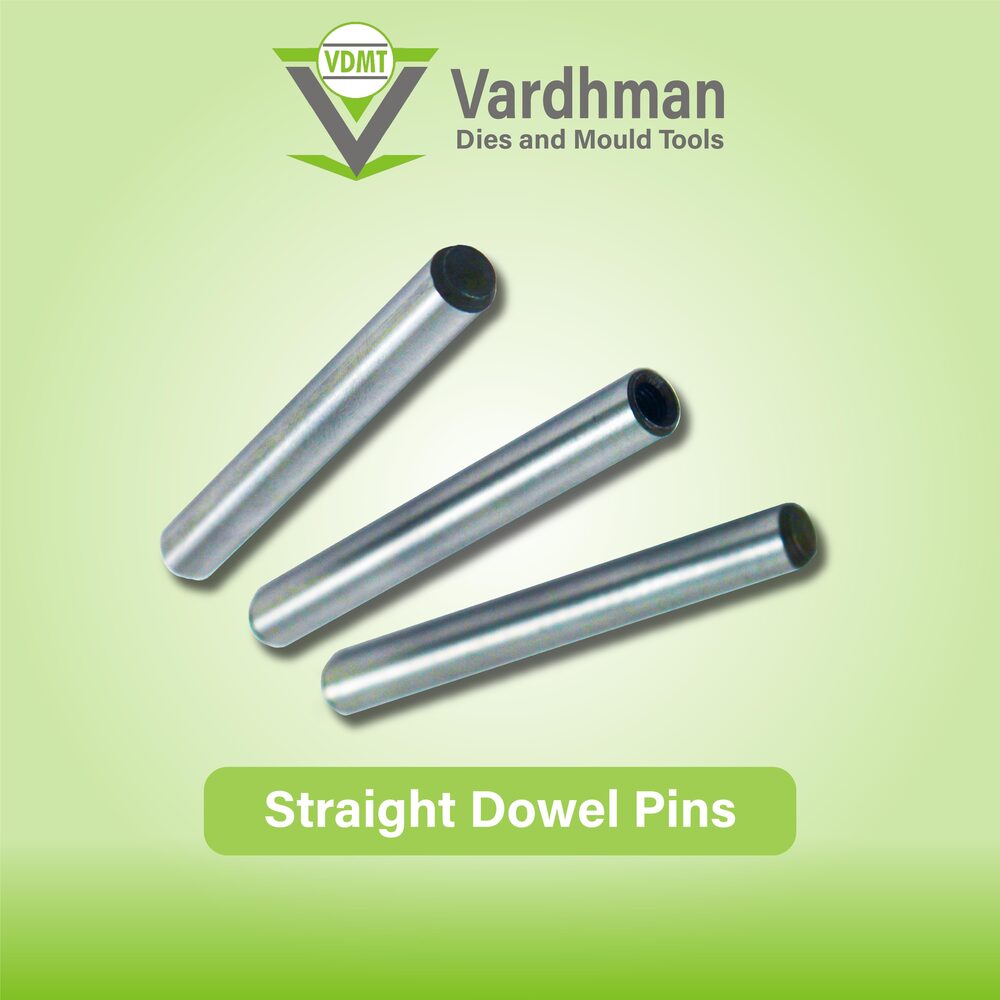

Dual Fit Dowel Pins

தயாரிப்பு விளக்கம்

Dual Fit Dowel Pins are advanced alignment components designed to provide exceptional fit and precision in mold assemblies and machinery. With a dual-fit design, these pins ensure secure and stable alignment between parts, accommodating both press-fit and clearance-fit requirements in a single component.

Key Features of Dual Fit Dowel Pins

1. Dual Fit Design

   • One end provides a press-fit for tight alignment.
   • The other end allows a clearance-fit for ease of assembly and disassembly.

2. Premium Material Options

   • Hardened steel, stainless steel, and alloy steel for strength and corrosion resistance.
   • Suitable for high-temperature and heavy-duty applications.

3. Enhanced Durability

   • Heat-treated for increased wear resistance and longer service life.
   • Withstands vibration, thermal expansion, and mechanical stress.

4. Precision Manufacturing

   • Machined to exact tolerances for consistent performance.
   • Smooth surface finish reduces friction during installation.

5. Wide Compatibility

   • Available in standard and custom sizes to fit various mold and machinery setups.

Advantages of Dual Fit Dowel Pins

• Versatile Usage: Combines the benefits of press-fit and clearance-fit dowels in one component.
• Time-Saving Installation: Simplifies assembly processes with its dual-fit design.
• Reliable Alignment: Prevents misalignment and ensures operational accuracy.
• Cost-Effective: Reduces the need for multiple dowel types in complex assemblies.
• Long-Lasting Performance: Resists wear and tear, even under extreme conditions.

Applications of Dual Fit Dowel Pins

• Injection Molding: Ensures precise alignment of mold plates for consistent product quality.
• Automotive: Used in engine assemblies, transmission systems, and structural alignments.
• Aerospace: Aligns critical components in aircraft systems.
• Heavy Machinery: Provides stability in industrial machinery and equipment.
• Tooling and Fixtures: Ensures precision in jigs, fixtures, and dies.

Specifications

• Material Options:
  • Hardened Steel
  • Stainless Steel
  • Alloy Steel
• Surface Finish:
  • Black Oxide, DLC Coating, Nitriding
• Tolerance Levels: Precision-machined to tolerances of ï0.01 mm
• Sizes: Standard and customized options available

Why Choose Vardhman Dies & Mould Tools for Dual Fit Dowel Pins?

1. Unmatched Quality: Manufactured using the best materials and stringent quality controls.
2. Custom Solutions: Tailored dowel pins to meet unique application needs.
3. Expert Guidance: Professional support to select the right products for your requirements.
4. Competitive Pricing: High-quality products at industry-leading prices.
